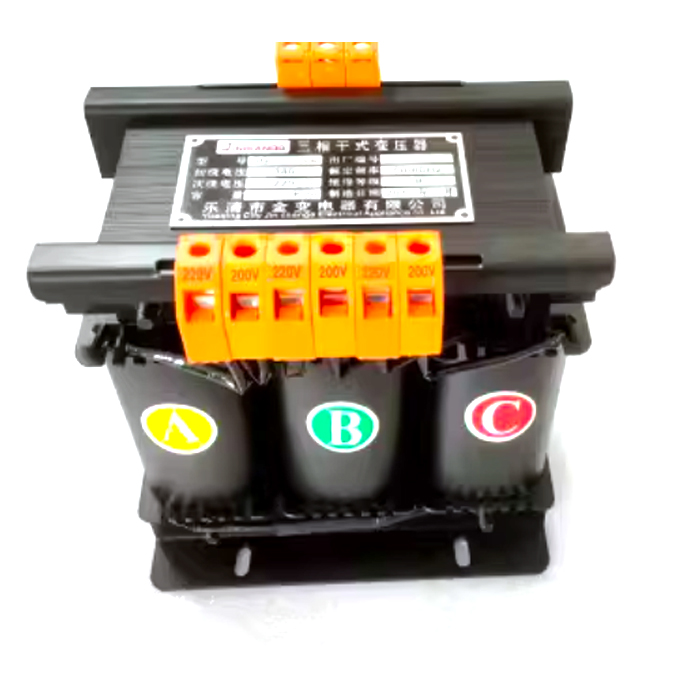

SBK-150VA/SBK-200VA Three Phase Control Transformer

Description

SBK-150VA/SBK-200VA Three Phase Control Transformer

Capacity of 50000VA and below, suitable for input voltage 1000V and below AC 50-60Hz circuit. It can work continuously for a long time under the rated capacity and is widely used in machine tools and mechanical equipment as a control power supply for general electrical appliances, local lighting and indicating power supply.

·The altitude does not exceed 2000 meters;

·The ambient air temperature is -25ºC to +40ºC, and the average value of 24 hours does not exceed +35ºC

·The relative humidity of the air does not exceed 90% at +25 ° C, and does not exceed 50% at +40 ° C

·Where there is no violent vibration and shock vibration, where there is no rain or snow attack:

In the medium without explosion risk, there is no gas and conductive dust enough to corrode metal and destroy insulation

Technical Specifications:

Winding Material	Enameled copper wire or enameled aluminum wire
Capacity	0.1KVA - 2500KVA
Input Voltage	480V 440V 415V 380V 220V 208V 200V Customized
Output Voltage	480V 440V 415V 380V 220V 208V 200V Customized
Frequency	50/60Hz
Connection Type	Dyn11/Yyn0
Insulation Level	F/H
Enclosures Protection Level	IP30
Pressure-tight Test	Primary to secondary 2.5KV/min Primary to safety ground 2.5KV/min Secondary to safety ground 1.5KV/min
Insulation Resistance	Primary to secondary 2500V > 100megohm Primary to safety ground 2500V > 100megohm Secondary to safety ground 1500V > 100megohm
Ground Resistance	25A<100milliohm
Induction Withstand Voltage Test	125Hz / 800V / 60s
Cooling Method	Natural or air cooling
Temperature Rise	≤125K
Transformation Ratio	<3%
Air Carrying Current	<3%
Impedance Voltage	about 4.5%
Total Losses	4%
Efficiency	80%--99%
Operating Temperature	-15ºC~40ºC (40ºC, 90%R.H., 56days)
Storage Temperature	-25ºC~100ºC(40ºC, 90%R.H., 56days)
Certificate	CE,ISO
The technical parameter for reference only, for exactly technical information, please feel free to contact us!
